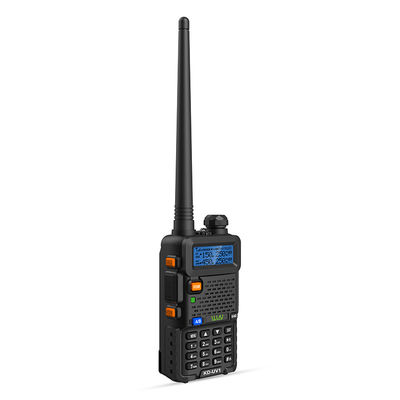

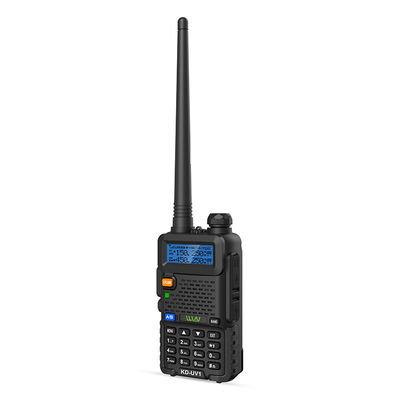

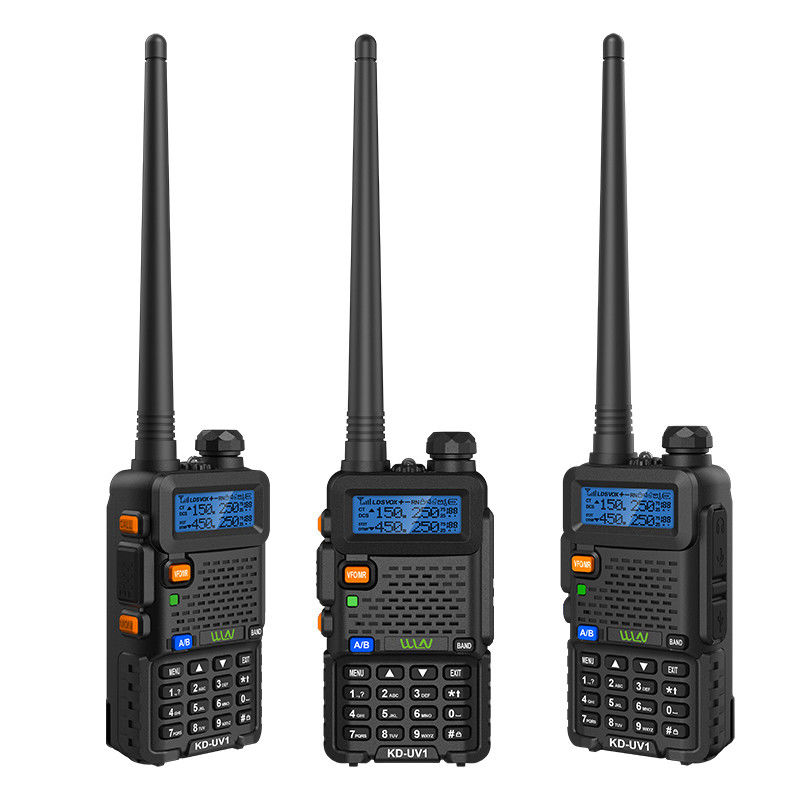

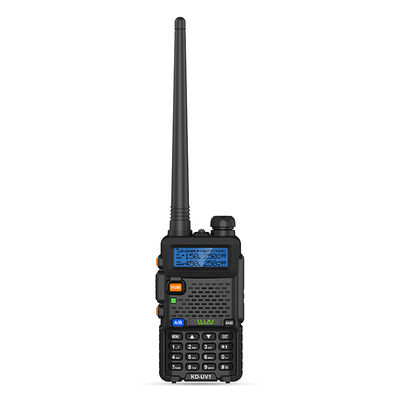

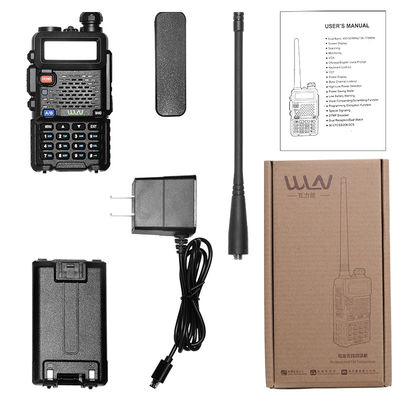

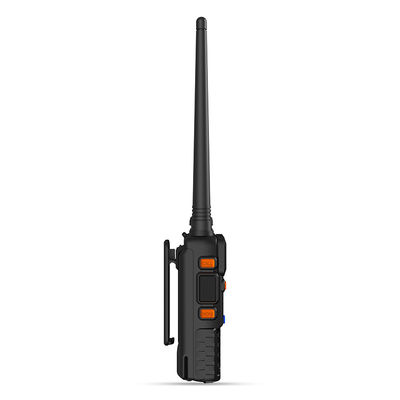

283.4g Long Range Walkie Talkie KD-UV1 Duan-band UHF400-470MHz VHF136-174MHz Private Mold

283.4g Long Range Walkie Talkie KD-UV1 Duan-band UHF400-470MHz VHF136-174MHz Private Mold

Product Details:

Place of Origin: China
Brand Name: WLN
Model Number: UV1

Payment & Shipping Terms:

Minimum Order Quantity: 2 pieces
Price: $13.00/pieces 2-49 pieces
Payment Terms: T/T, L/C, MoneyGram, PayPal, Western Union
Get Best Price Contact Now

Detail Information
Talk Range: 3-6KM Walkie Talkie Type: Handled
Output Power: Other Terminal Style: Handheld
Dimensions: 111*59.3*34mm Frequency Range: UHF400-470MHz VHF136-174MHz
Storage Channel: 199 Weight: 283.4g
OEM: OEM Welcomed Warranty: 2 Years
MOQ: 2 Pcs Power: Replaceable Battery
Usage: Wireless Communication Function: TOT
Advantages: Directly Private Mold: Yes

Product Description

Products Description
Product Name
Walkie Talkie
Frequency Range
UHF400-470MHz VHF136-174MHz
Supply Power
DC7.2V
Memory Channel
199
Antenna Configuration
External Antenna
Antenna Impedance
50Ω
Work Mode
Co/Differ-frequency Simplex Communication
Step Frequency
2.5 / 5/ 6.25/ 10/ 12.5/ 25/ 50/1 00KHz
Dimension
111*59.3*34mm
Output Power
5W/2W
Modulation Mode
FM(F3E)
Max.Frequency Deviation
≤5KHz/≤2.5KHz
Sparious Radiation
≤7.5μW
Preemphasis Character
Per Octave 6dB
Emission Current
≤1.5A
Sensitivity
<0.16μV(12dB SINAD)
Audio Power
≥1W
Audio Distortion
<7.5%
Intermodulation Interference Resistance
≥65 dB/≥60dB
Receiving Current
≤380mA
Standby Current
≤20mA
We May Change The Specifications For Technical Improvement Without Prior Notice.
