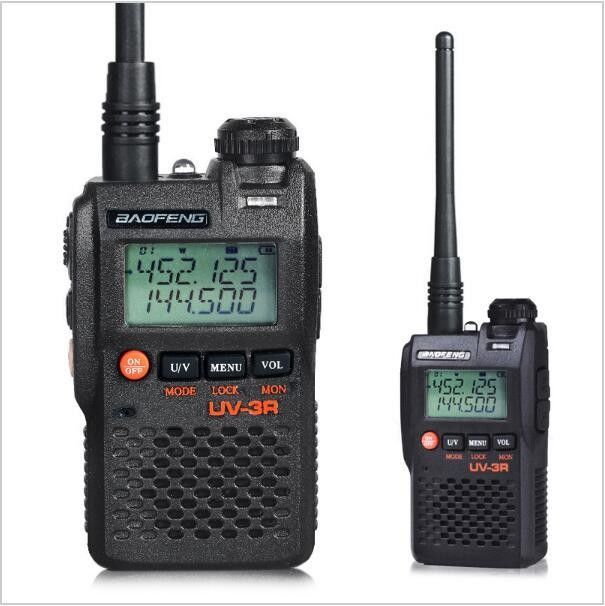

UV-3R Long Range Dual Band UHF VHF Handy Two Way Radio with Lcd display Walkie Talkie
Product Details:
| Place of Origin: | China |
| Brand Name: | Baofeng |
| Model Number: | UV-3R+plus |
Payment & Shipping Terms:
| Price: | $10.00/pieces >=1 pieces |
|---|---|
| Payment Terms: | T/T, L/C, MoneyGram, PayPal, Western Union |
|
Detail Information |
|||
| Talk Range: | 1-10km | Walkie Talkie Type: | Walkie Talkie |
|---|---|---|---|
| Output Power: | 5W, 7W (Max 5W) | Terminal Style: | Handheld |
| Dimensions: | 60x30x150mm | Frequency Range: | 136-174MHz 400-520MHz |
| Storage Channel: | 128 Channels | Product Name: | Walkie Talkie |

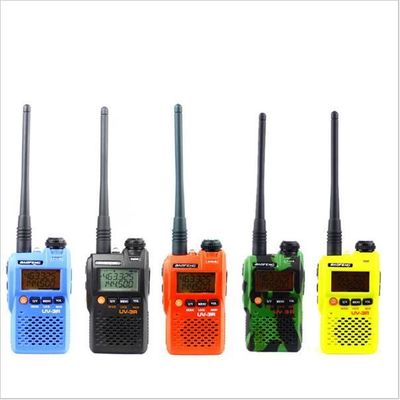

| Color: | Black/Camouglage/Red/Blue/Yellow | Battery Capacity: | 3800mAh |
| Battery Life: | 48 Hours | Feature: | VHF UHF Dual Band Walkie Talkie |
| Function: | LED Display, FM Transceiver,flashlight Function | Maximum Range: | 3km-15km |
| Warranty: | 18 Month | Certificate: | CE FCC Rohs Certificate |
Product Description
About FM function:
As you may already know, there has been a global shortage of chips since last year, so our factories had to replace chips. In order to technically guarantee the quality of the walkie-talkie, the FM radio function has been removed on the new radio.
Hopefully the chip shortage will get better soon after crypto mining gets smaller and FM radio functionality back soon.
Thanks for your understanding!
TECHNICAL SPECIFICATION:
1.-GENERAL:
Frequency range: 65MHz-108MHz(Only commercial FM radio reception).
VHF:136MHz-174MHz (Rx/Tx).
UHF:400MHz-480MHz (Rx/Tx).
Memory channels: Up to 128 channels
Frequency stability: 2.5ppm.
Frequency step: 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz.
Antenna impedance: 50Ω.
Operating temperature: -20 ° C to +60 ° C.
Supply voltage: Rechargeable Lithium-Ion mAh 7.4V/1800.
Consumption in standby:
Consumption in reception: 380mA
Consumption in transmission: ≤1.4 A.
Mode of operation: Simplex or semi-duplex.
Duty cycle: 03/03/54 min. (Rx / Tx / Standby).
Dimensions: 58mm x 110mm x 32mm
Weight: 130 g (approximate).
2.-TRANSMITTER:
RF power: 5W/10W. (MAX7W)
Type of modulation: FM.
Emission class: 16KΦF3E/11KΦF3E (W/N).
aximum deviation: ≤±5 kHz/≤±2.5 kHz (W/N).
Spurious emissions: <-60 dB.
3.-RECEIVER:
Receiver sensitivity: 0.2 μV(at 12 dB SINAD).
Intermodulation: 60 dB.
Audio output:
Spurious Radiation:
Note: All specifications shown are subject to change without notice.
