*Frequency FM:87–108 MHZ (RX) UHF:400–470 MHZ (RX/TX) *Up to 16 Channels *Commercial FM radio * Chinese/English Language * 50
Groups CTCSS,105 Groups of standard DCS *Time-out timer(TOT) *Battery saving function * Alarm function * USB rapid charge *
Programmable by PC Technical Specification General: Frequency range UHF400-470MHz Memory channels 16 Groups Operation voltage
3.7V Frequency stability ±2.5ppm Operation temperature -20℃—+50℃ Mode of operation Simplex Antenna impedance 50Ω Transmitter: RF
Power <5W Maximum deviation(W/N) ≤5KHz/≤2.5KHz Spurious emission ≤7.5uW Adjacent channel power ≤-65dB/≤-60dB SNR(W/N)
≥-45dB/≥-40dB QT/DQT (W/N) 0.7±0.1KHz/0.4±0.1KHz Modulation sensitivity 8—12mV Transmission current ≤1.2A Receiver: Sensitivity
-122dBm (12dB SINAD) Audio power 0.4W(8R Load) Audio distortion ≤10% Intermediation(W/N) ≥65dB/≥60dB Adjacent channel
selectivity(W/N) ≥65dB/≥60dB Clutter suppression ≥65dB Receiver current ≤380mA
 |

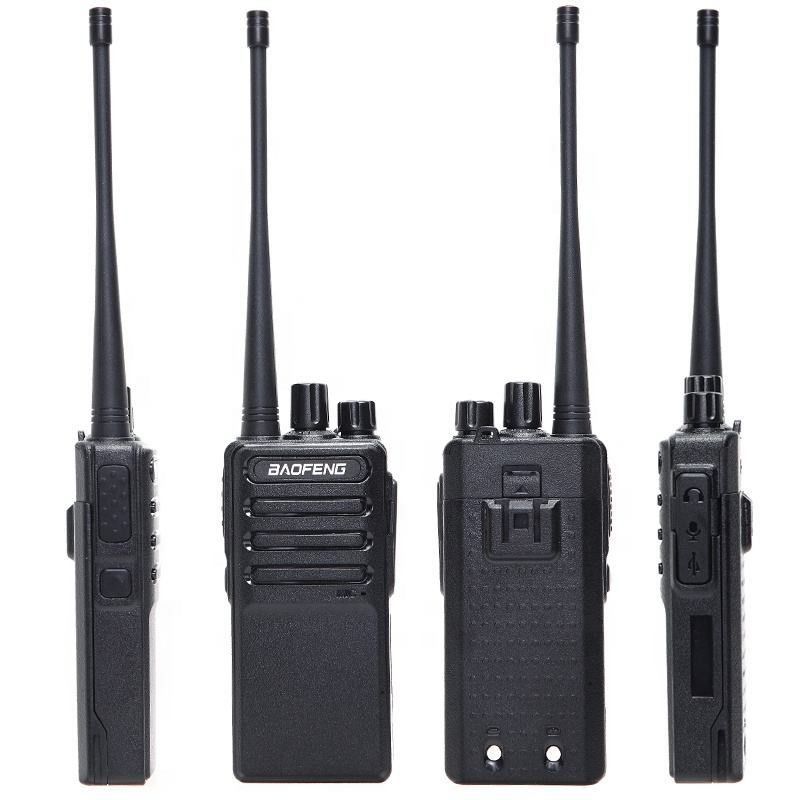

Long Range Wireless Custom BF-C2 Walkie Talkie for Handheld Communication
Product Details:
| Place of Origin: | China |
| Brand Name: | Baofeng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $7.80/pieces 10-98 pieces |
| Payment Terms: | T/T, L/C, MoneyGram, PayPal, Western Union |
|
Detail Information |
|||
| Talk Range: | 1-10KM | Walkie Talkie Type: | Walkie Talkie |
|---|---|---|---|
| Terminal Style: | Handheld | Dimensions: | 110*50*32mm |
| Frequency Range: | 400-470MHz | Storage Channel: | 16 |
| Warranty: | 12 Months | MOQ: | 1pcs |
| OEM: | OEM Welcomed | Color: | Balck |
| Battery Capacity: | 1000mAh | Radio Type: | Professional Radio |
| Weight: | 0.6kg | Frequency: | 136-174MHz Or 400-470MHz |
| Ham Radio: | Amteur Radios | Advantages: | Easy |
Product Description
Product Description
FEATURE and fUNCTION:
Specification
| item | value |
| Place of Origin | China |
| Fujian | |
| Brand Name | Baofeng |
| Model Number | |
| Type | Handheld |
| Dimensions | 110*50*32mm |
| Frequency Range | 400-470MHz |
| Storage Channel | 16 |
| Talk Range | 1-10KM |
| Walkie Talkie Type | walkie talkie |
| Warranty | 12 Months |
| MOQ | 1pcs |
| OEM | OEM Welcomed |
| Color | Balck |
| Battery capacity | 1000mAh |
| Radio Type | Professional Radio |
| Weight | 0.6kg |
| Frequency | 136-174MHz or 400-470MHz |
| Ham radio | Amteur Radios |
| Advantages | Easy |
